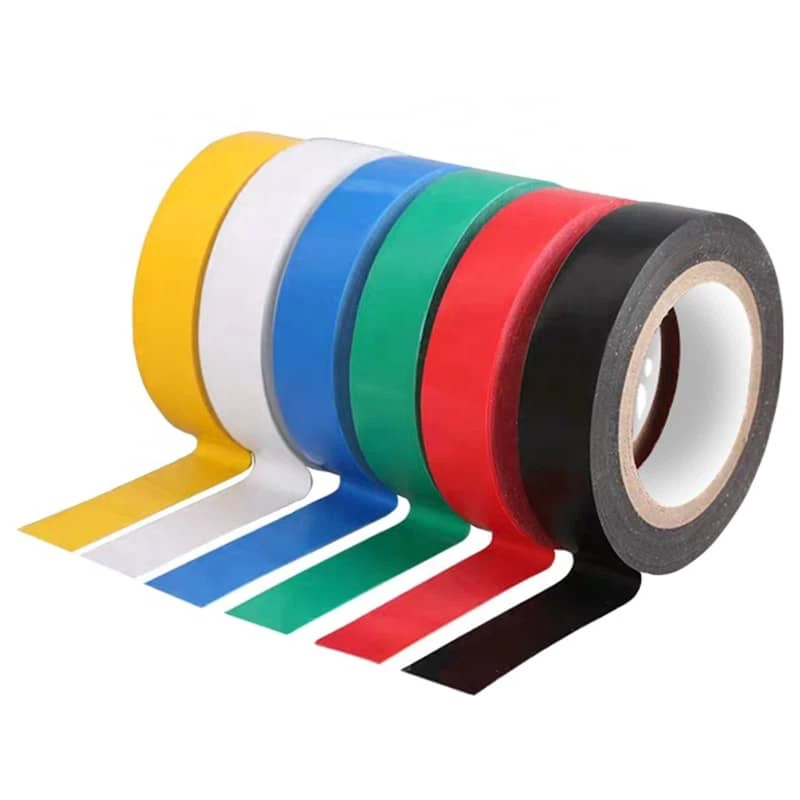

High Quality PVC Electrical Insulation Tape
PVC electrical insulation tape is made from a polyvinyl chloride (PVC) film coated with a rubber-based pressure-sensitive adhesive. It is an essential insulating material, mainly used to provide electrical insulation and protection for wires and components.
Key Applications
1. Electrical Insulation Protection
This is the primary function of PVC tape. It is widely used to wrap wire and cable joints, exposed conductors, or damaged insulation layers, preventing current leakage, short circuits, or electric shock accidents. Typical applications include household circuit maintenance and industrial electrical equipment.
2. Wire Identification and Organization
PVC electrical tape is available in different colors, making it convenient for distinguishing wires by function, such as live, neutral, and ground wires. It also helps bundle and organize messy wiring, keeping cable harnesses neat.
3. Moisture and Surface Protection
With light waterproofing properties, PVC tape can be used for simple sealing in outdoor or humid environments to prevent moisture from affecting insulation performance. It also provides basic protection against dust, abrasion, and minor damage.
Product Parameter
| Adhesive | Rubber |
| Total Thickness | 0.13mm-0.15mm |
| Width | 19mm-1250mm |
| Tensile Strength | 20N/cm-24 N/cm |
| Elongation | 130%-150% |
| Adhesion to steel | 1.8N/cm |
| Temperature Rating | 80ºC (176ºF) |
| Voltage Rating | 600V |
| Colors | Red, Black,Green,Yellow,White |
our Products
Voltage Withstand Performance
Key Parameters of Voltage Withstand Performance
- General Voltage Withstand Rating: Most general-purpose PVC electrical insulation tapes for civilian and industrial use are rated for 600V AC (alternating current voltage).
- Testing Standards and Breakdown Voltage: Tested according to industry standards.
- Relationship between Thickness and Voltage Withstand Performance: Tape thickness affects voltage withstand performance; generally, thicker tape has greater voltage withstand capability.
Factors Affecting Voltage Withstand Performance
- Usage Environment: Humid, high-temperature, or oily environments can reduce the insulation performance of the tape.
- Construction Quality: Air bubbles, wrinkles, or incomplete coverage of exposed conductors during application can create weak points in the insulation. Even if the tape itself meets the voltage withstand rating, breakdown may occur at these points.
- Aging: After long-term use, the PVC backing material will age and harden due to oxidation and sunlight exposure, gradually degrading its insulation performance. Regular inspection and replacement of aged tape is necessary.
